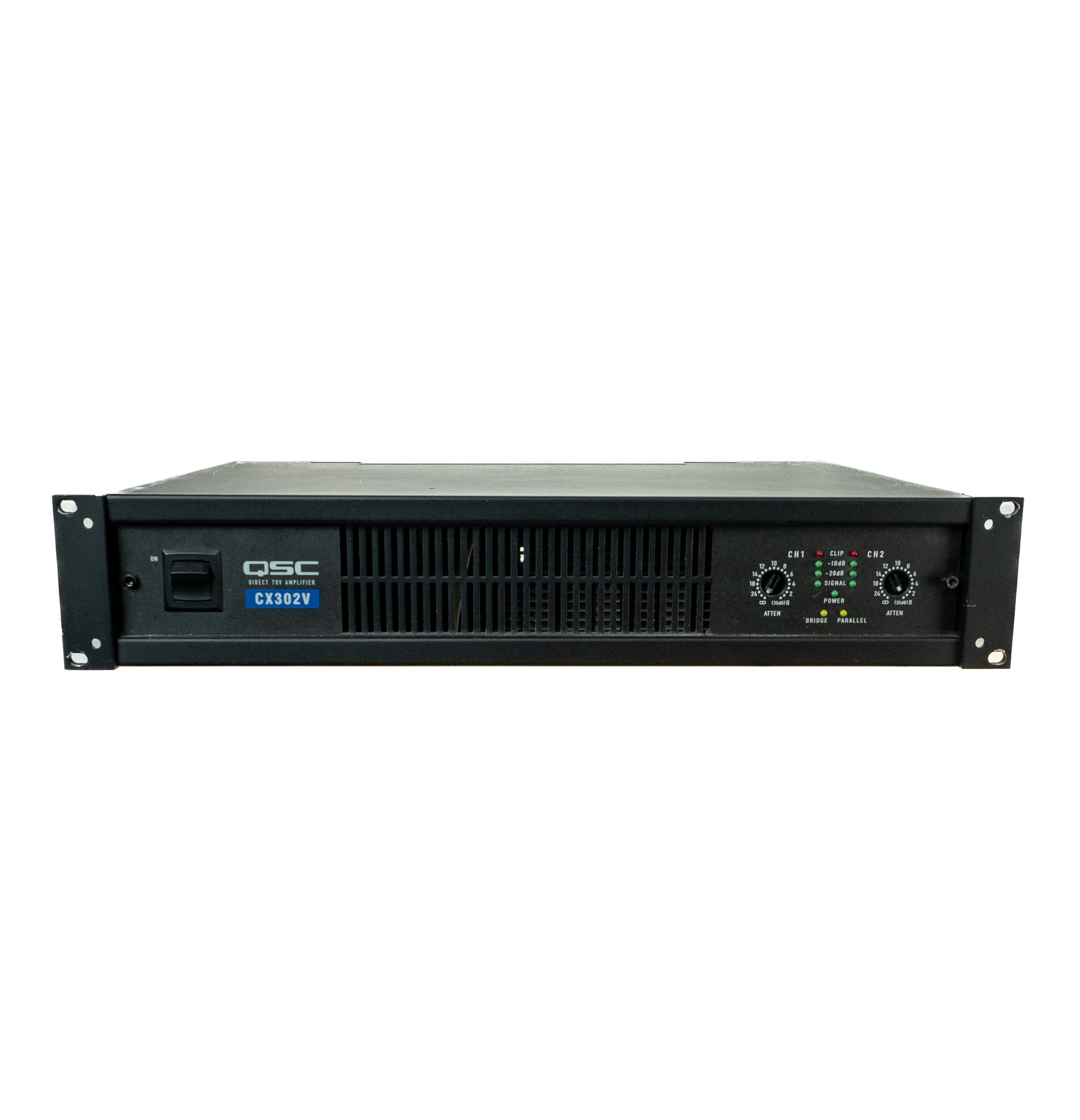

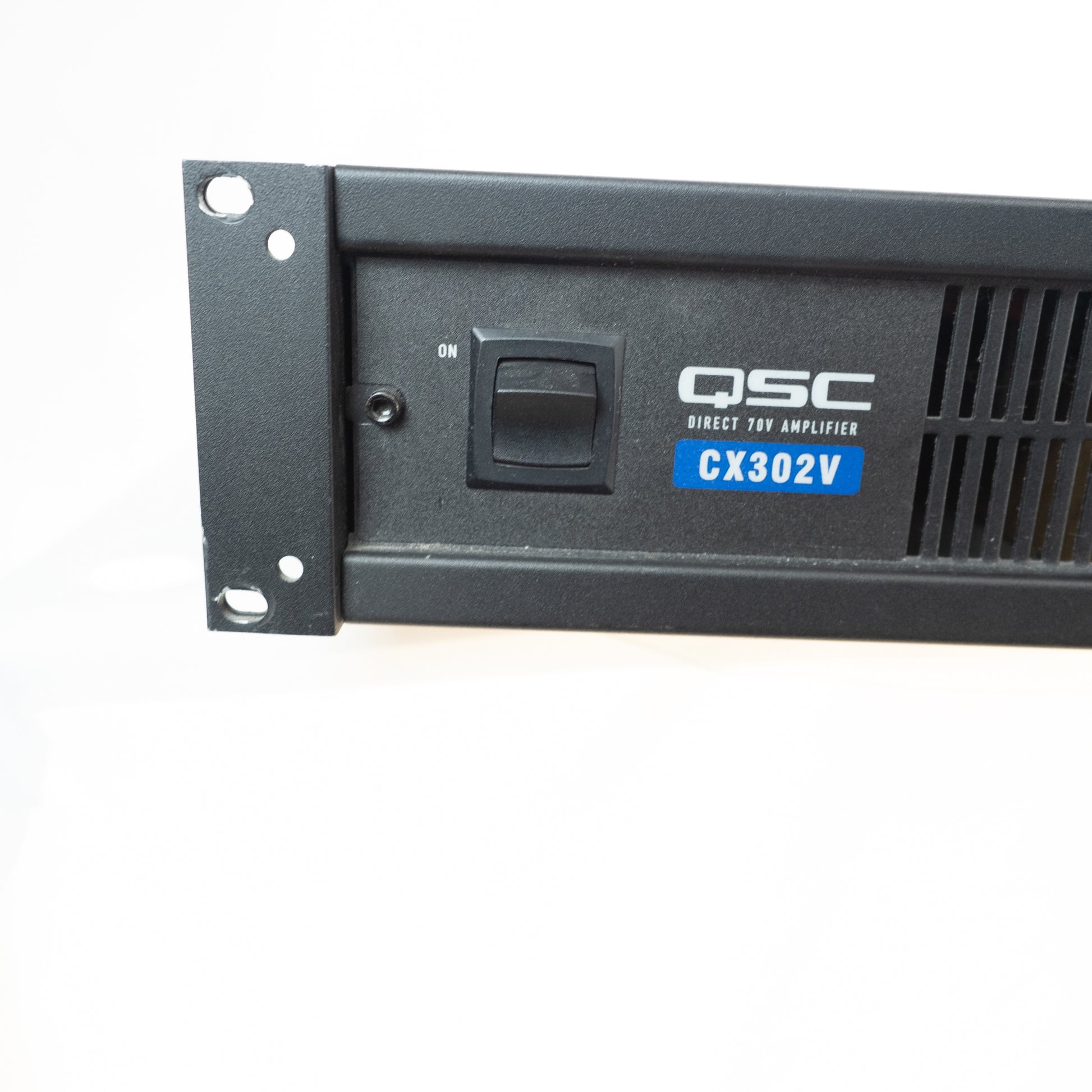

QSC CX302V 70 volt stereo power amplifier

Tested, works, however the channel 1 pot is scratchy, works best at full power.  Specs below may not be completely accurate, it would seem that the specs may have changed slightly over time.

The CX Series is designed to meet the specialized needs of sound contractors. The 2-channel CX302V 200W 70 V power amplifier has been designed from the ground up, combining the exclusive QSC PowerLight™ technology with specific features to meet the requirements of fixed installations. With high-output power, versatile loading options, high thermal capacity and unmatched reliability, the CX Series is the perfect solution to any permanently installed sound system. The CX302V is equipped with many contractor-specific features including 1 dB detented gain controls for easily repeatable settings and a custom security cover for tamper-proof installations. Active Inrush Limiting eliminates AC inrush current, cutting the need for power sequencers. The CX302V also includes an HD-15 DataPort connector to interface with QSControl, QSC's computer-controlled audio system, that allows remote amplifier monitoring and control via a standard Ethernet network.

Features

• 200W per channel 70 V power amplifier
• PowerWave technology delivers tighter bass and cleaner highs

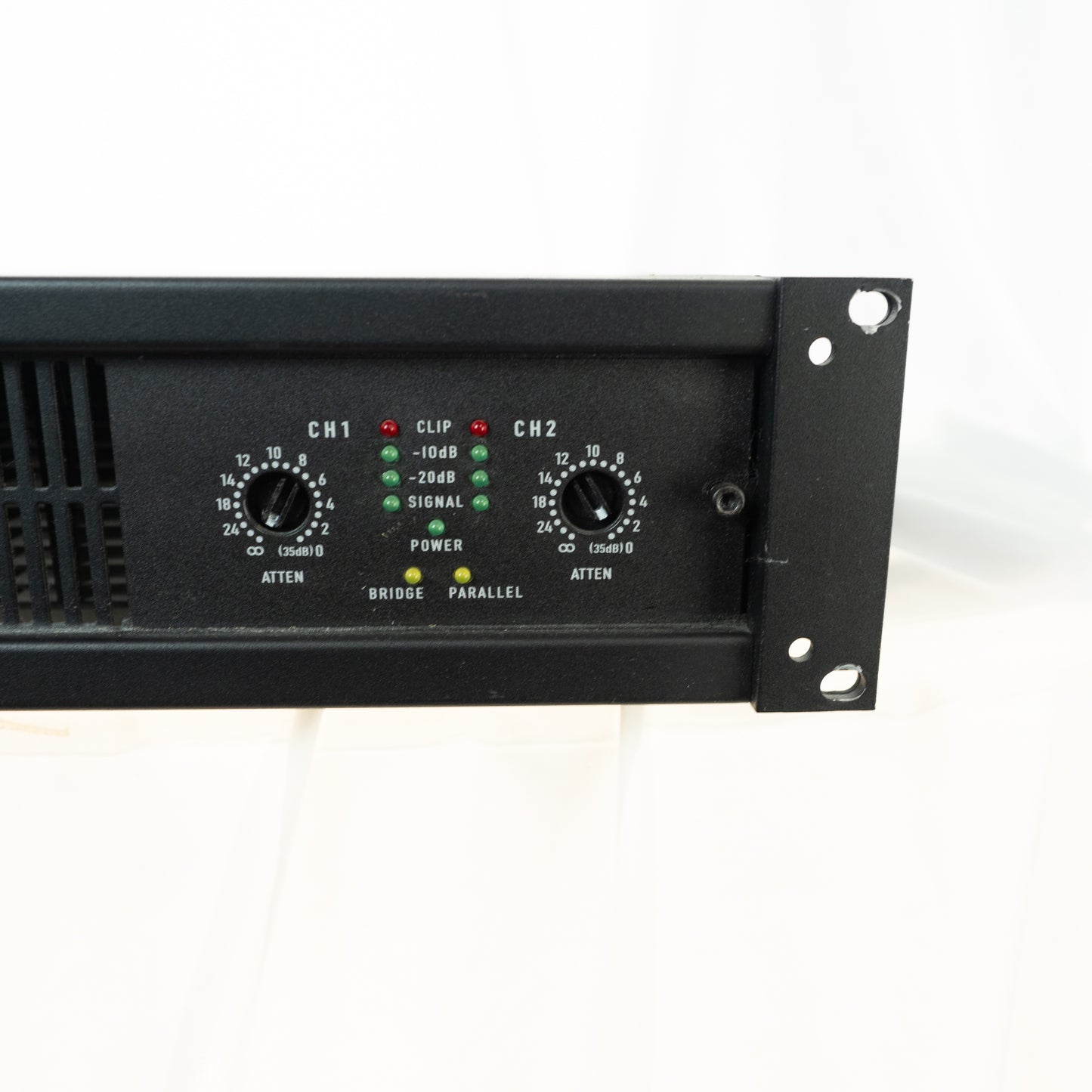

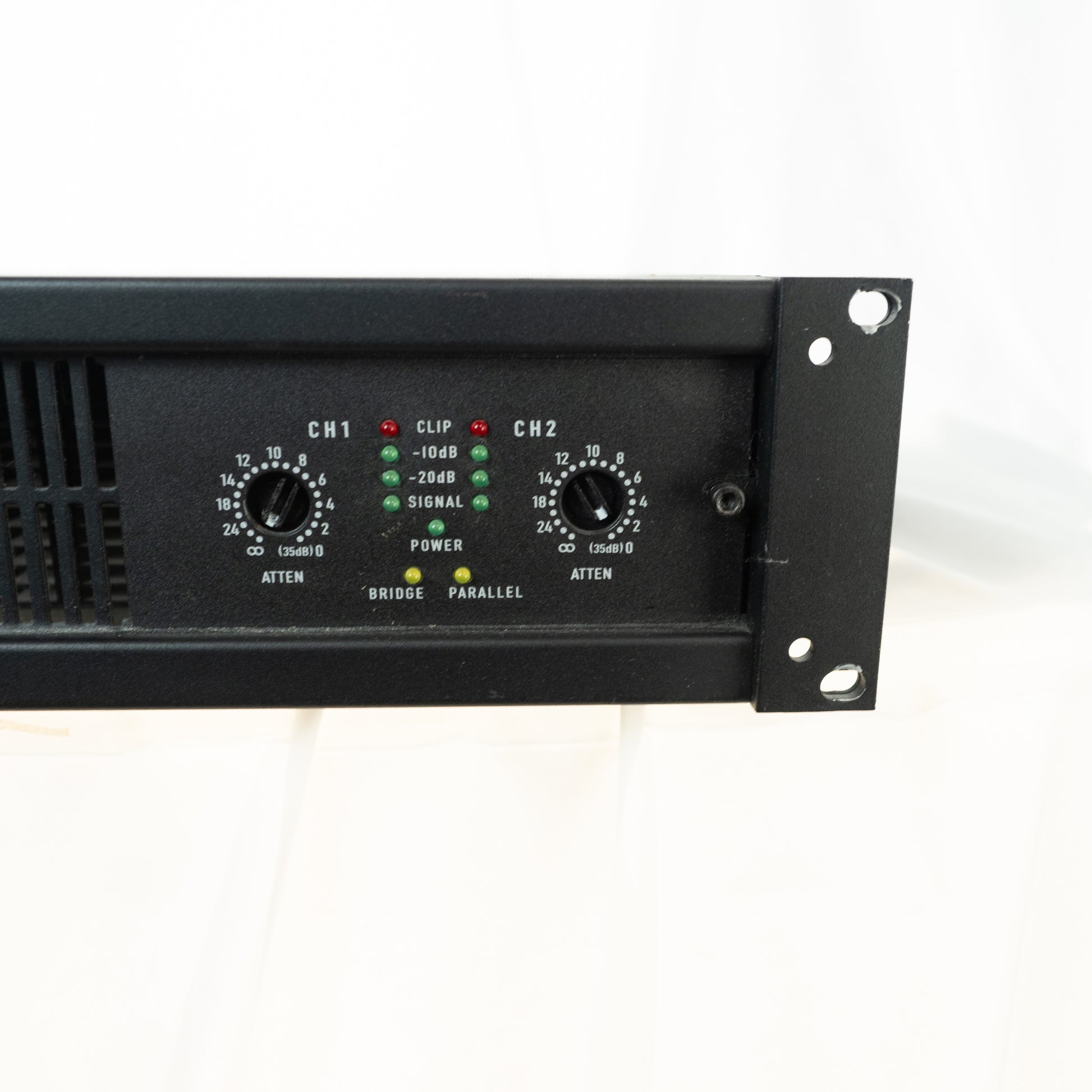

• 1 dB detented gain controls
• HD-15 DataPort connector for QSControl computer control
• XLR and detachable Euro-style input connectors

Specifications

• Power Ratings:
  • 70V, Stereo Mode, Both Channels Driven, 20 Hz - 20 kHz, 0.05% THD: 200W
  • 70V, Stereo Mode, Both Channels Driven, 1 kHz, 0.05% THD: 250W
  • 70V, Stereo Mode, Both Channels Driven, 1 kHz, 1% THD: 300W
  • 140V, Bridged Mono Mode, 20 Hz - 20 kHz, 0.1% THD: 400W
  • 140V, Bridged Mono Mode, 1 kHz, 0.05% THD: 500W
  • 140V, Bridged Mono Mode, 1 kHz, 1% THD: 600W
• Input Impedance: 6 kΩ unbalanced, 12 kΩ balanced

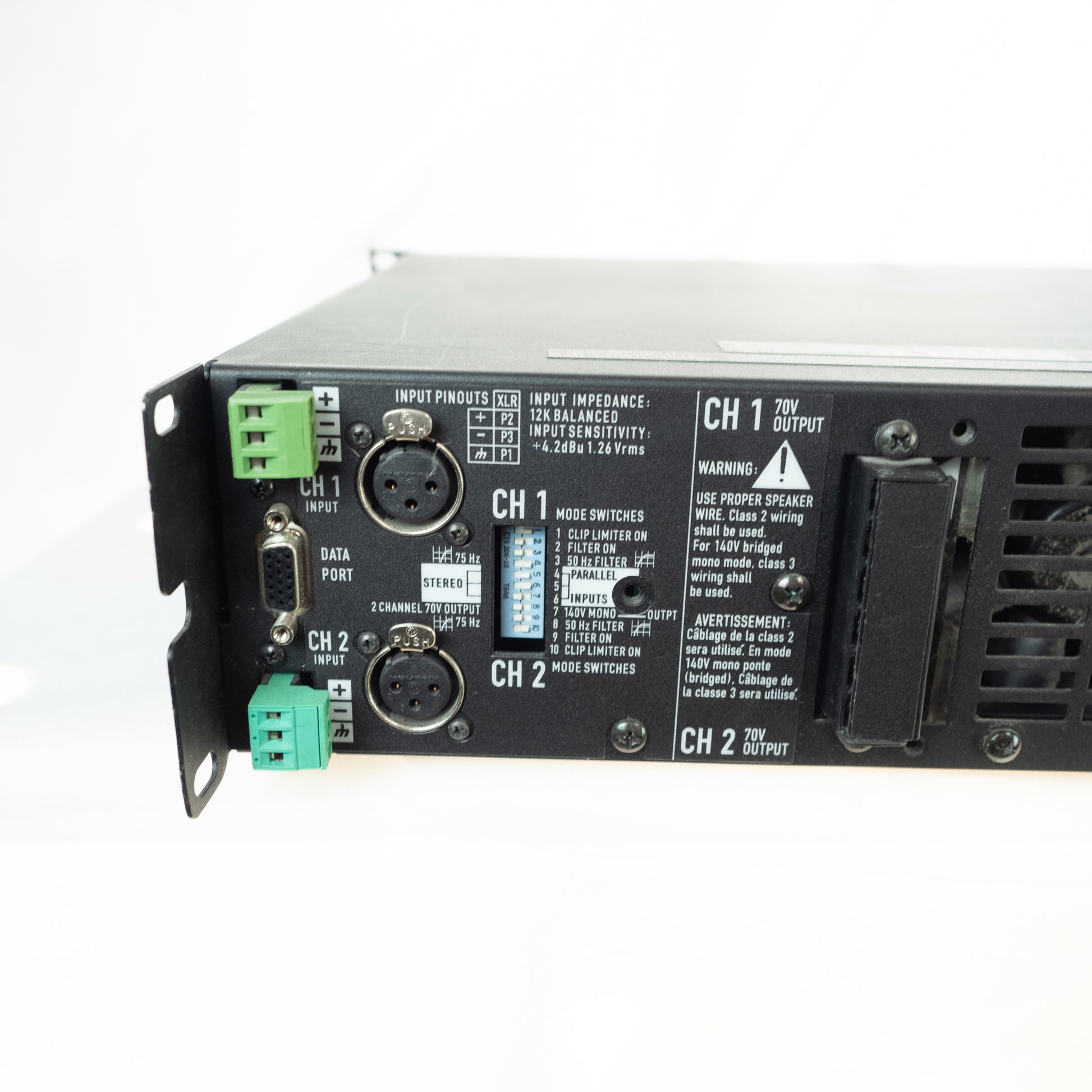

• Input Connectors, each channel: 3-pin XLR and 3-pin detachable terminal blocks (1 each per channel)

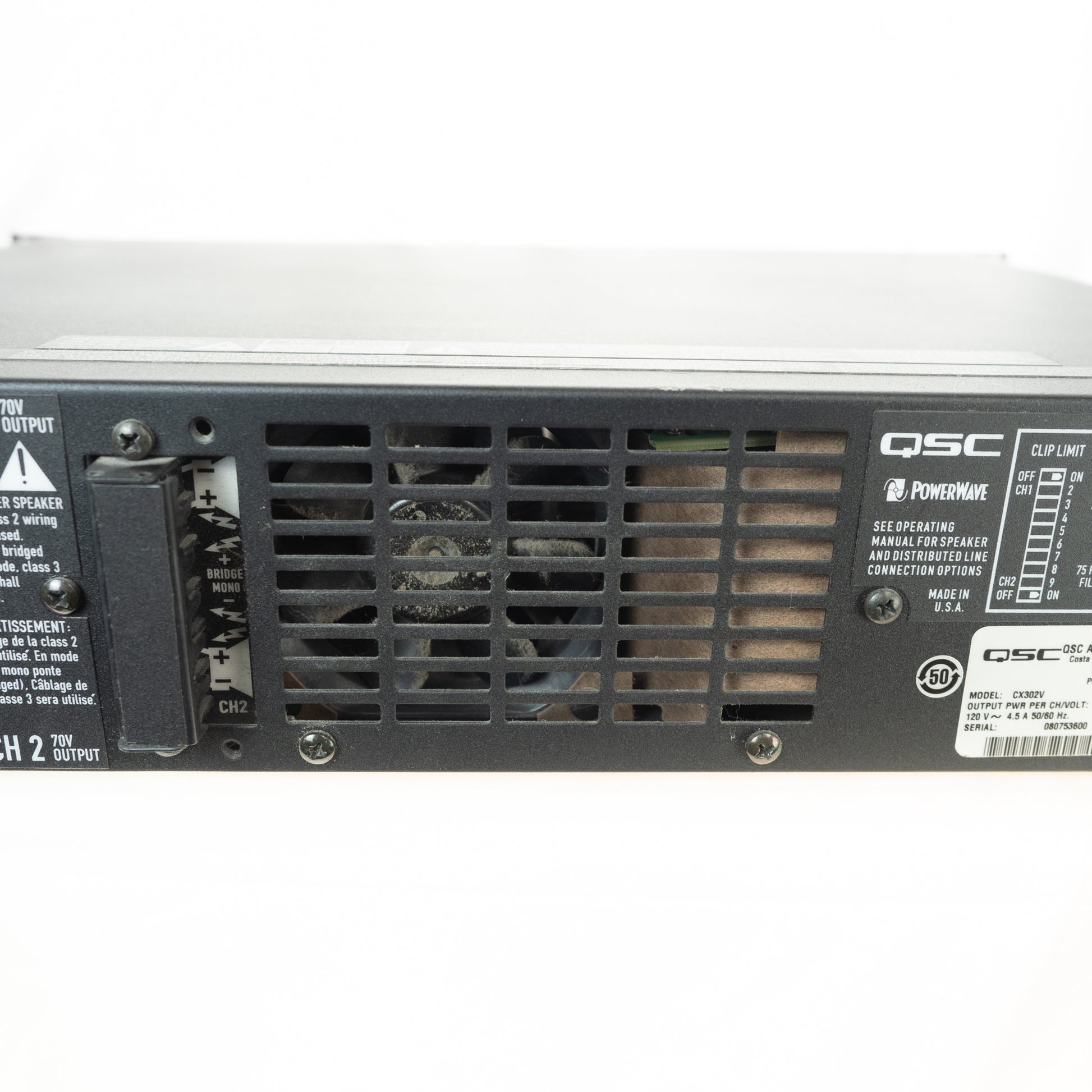

• Output Connectors, each channel: Safety-shrouded barrier strip
• Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic and RF protection. Stable into reactive or mismatched loads
• Load Protection: On/Off muting, DC-fault power supply shutdown
• Dimensions (W x H x D): 19" x 3.5" x 14" (2 U)
• Weight: 16.75 lbs. net
